Odroid HC1

GbE legacy mainline Samsung SATA


Ubuntu server – LTS kernel
  .torrent (recommended) ?
Command line interface – server usage scenarios.

Stable

Debian server – LTS kernel
  .torrent (recommended) ?
Command line interface – server usage scenarios.

Stable

other download options and archive

Known issues

Legacy kernel images

Based on a review from @tkaiser,

https://forum.armbian.com/index.php?/topic/4983-odroid-hc1/

  1. Use next kernel,
  2. don’t think about USB3 issues any more (that’s a XU4 problem),
  3. don’t expect serial console problems (that was an Armbian problem), and
  4. please overthink ‘rootfs on HDD’ (on SSD that’s great, HDDs are too slow and you prevent them from sleeping when moving the rootfs on them).
  • eMMC install might be broken if you don’t have recent uboot on your eMMC card – you must update it. Add run copy_uboot_sd2emmc to your boot.ini, boot from SD card with attached eMMC. This is one time job – remove that command from boot.ini,

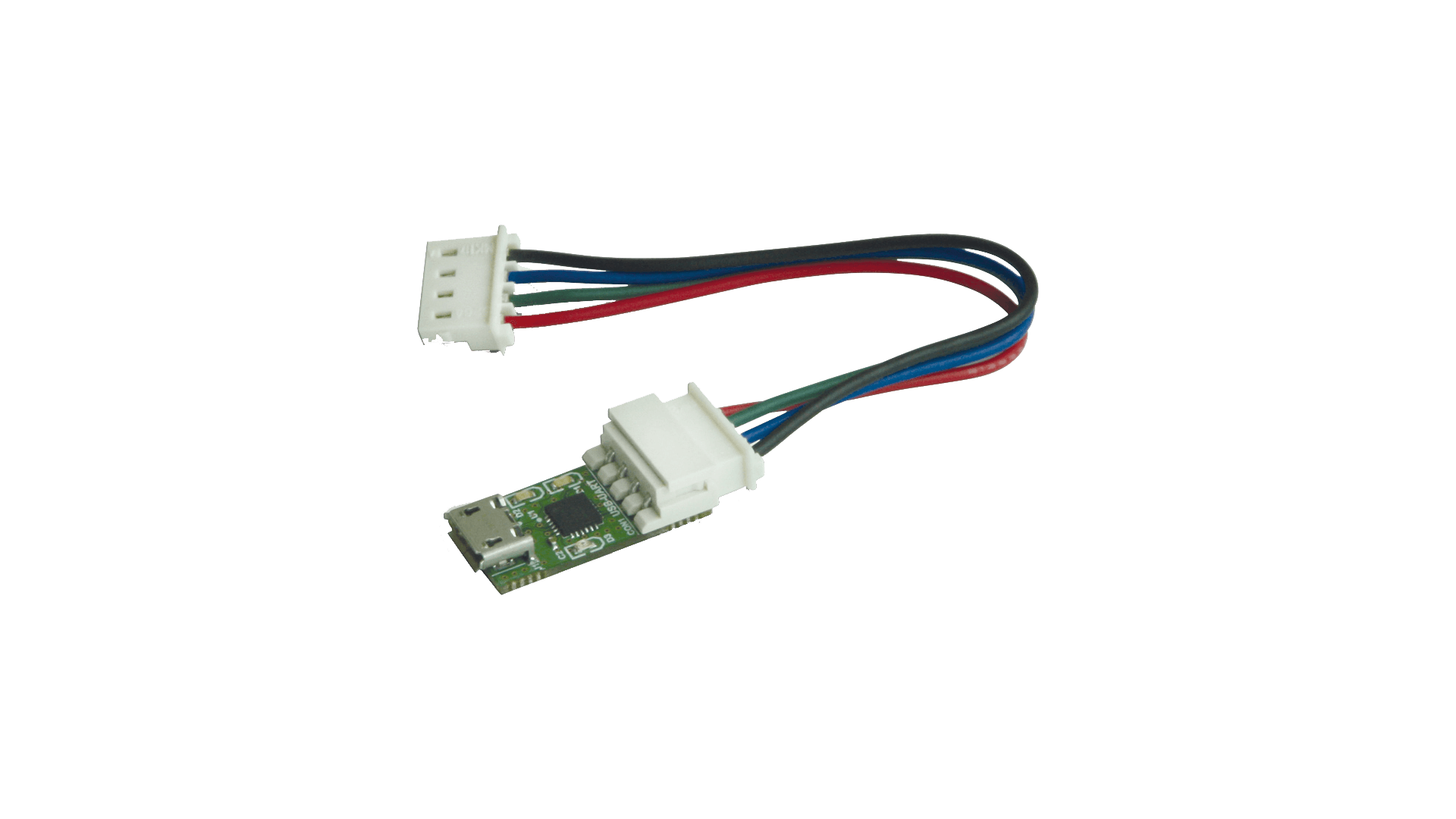

  • serial console is broken.

Mainline kernel images
TBD

Hardkernel kept everything 100% compatible to ODROID XU4

With HC1 we’re talking about Hardkernel’s 4.9 or mainline

Unverified matter

derived from comment chain in the review

  1. Mine is not connecting at gigabit – fast ethernet only. Same cable (+few others), same PSU, same SD card, any kernel, while XU4 runs at Gigabit w/o problem

    Possibly a cable quality issue, as a cable swap caused the problem to disappear

Notes

  1. Based on the XU4 template with exceptions

  2. To avoid ‘using up’ write cycles on the SD media, once working, move to a RO root
    filesystem, and ‘chain boot’ into the 2.5 in SATA drive (either SSD or spinnnig)
    which do not have the same ‘wear’ issues

Boot message chain

  1. Made with:

    armbianmonitor -u output

test run done with external RTL8153 behind internal USB3 hub on XU4

http://sprunge.us/cOJP

Quick start | Documentation

Preparation

Make sure you have a good & reliable SD card and a proper power supply. Archives can be uncompressed with 7-Zip on Windows, Keka on OS X and 7z on Linux (apt-get install p7zip-full). RAW images can be written with Etcher (all OS).

Boot

Insert SD card into a slot and power the board. (First) boot (with DHCP) takes up to 35 seconds with a class 10 SD Card and cheapest board.

Login

Login as root on HDMI / serial console or via SSH and use password 1234. You will be prompted to change this password at first login. Next you will be asked to create a normal user account that is sudo enabled (beware of default QWERTY keyboard settings at this stage).

Tested hardware

 legacy kernel
32GB SD card
