- powering with PD capable PSU is not possible. It has to be dumb 5V
- To support M2P you need to add this to the /boot/armbianEnv.txt and reboot:
fdtfile=amlogic/meson-sm1-bananapi-m2-pro.dtb
- To change display resolution, add below to the /boot/armbianEnv.txt:
extraargs=video=HDMI-A-1:1920x1080M@60
Hold power button for about 7-8 seconds to power the device up. Boot log: http://ix.io/1r19
Known problems:
- HDMI is not working and will probably never,
- onboard wireless is too fragile, disabled by default.
- works: serial console, 8 cores, USB, SATA, HDMI, DRM video driver

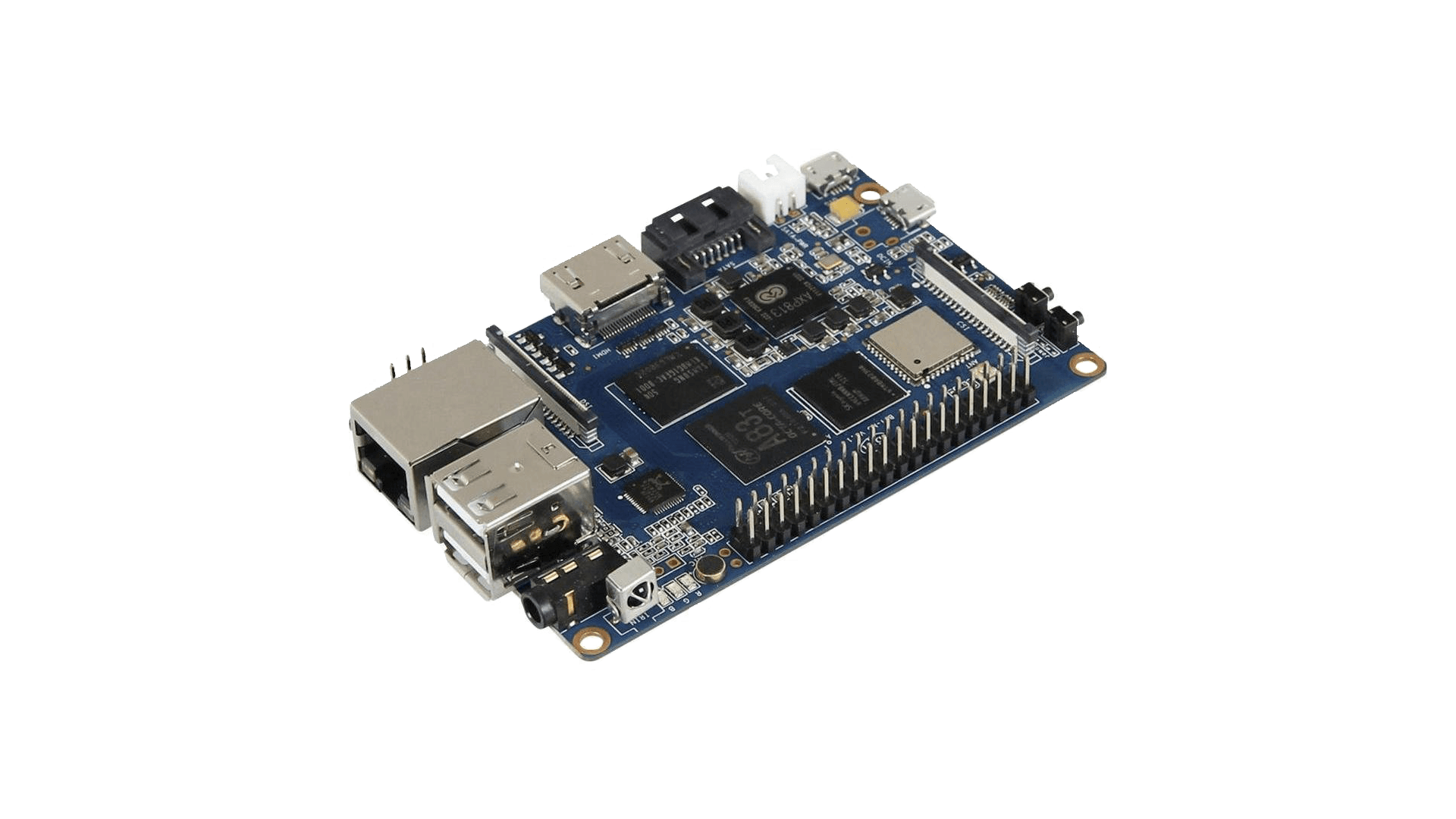

- A83T chip isn’t SATA capable and therefore the SATA port is provided by a (very) slow GL830 USB-to-SATA-bridge
- https://forum.armbian.com/topic/474-banana-pi-m3/
- Some devices powers off on load
